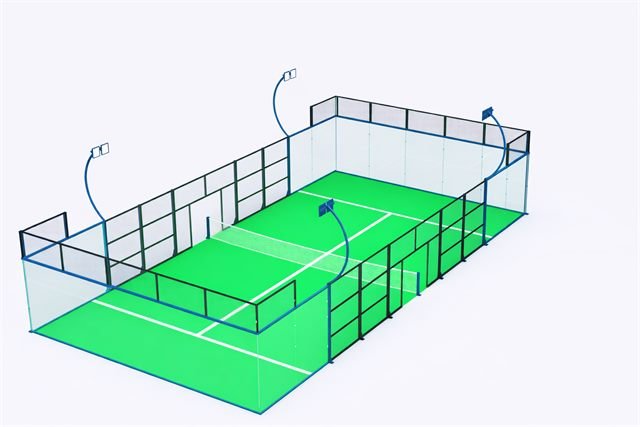

Evolve super panoramic padel court

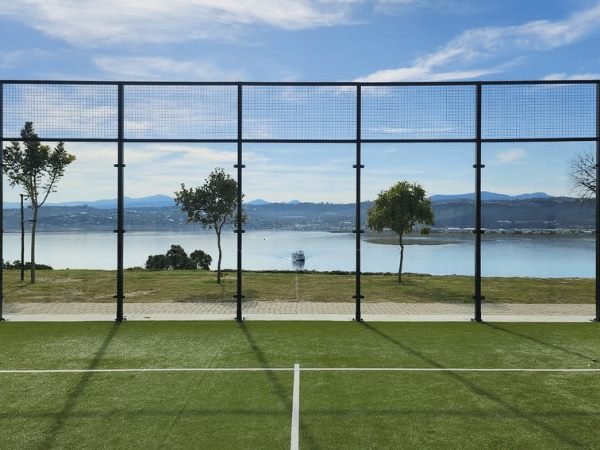

Maximum glass, minimum steel: the corner supports are integrated into the glass frame, so no corner columns interrupt the view.
- Corner supports integrated into the glass frame
- Open, uninterrupted view for players and spectators
- Wind resistance up to 71.5 m/s, 80.5 m/s reinforced
- 18 tempered glass panels, 12 mm, EN 12150-1
- Q235B steel, hot-dip galvanised and powder-coated
- 8 × 200 W IP65 LED lighting, up to 300 lx
Options
Description
The super panoramic court is designed for maximum visual openness without giving up stability or safety. The corner supports are built into the glass frame, so there are no bulky corner columns and the playing area stays clean and open. It was engineered for extreme wind loads: up to 71.5 m/s for the standard structure and 80.5 m/s for the reinforced version.
Steel structure
Columns and beams are high-grade Q235B steel, hot-dip galvanised in three layers for a service life of more than 20 years, even in wet conditions. Electrostatic powder coating is applied in stages on an automated line: an outdoor zinc primer first, then two coats of outdoor powder paint, for an even colour and strong corrosion protection. All parts are cut, drilled and machined on CNC equipment to drawing tolerances, which cuts installation time and cost by up to 35 %.
Mesh fence
Hot-dip galvanised wire, 4 mm in diameter, with 50 × 50 mm openings in 1 × 2 m frames. Each segment is welded individually, every weld is ground and rounded, and the mesh is shot-blasted before the zinc powder coat, so there are no sharp edges or snag points.
Glass
18 tempered float glass panels, 2995 × 1995 mm, each with 8 countersunk holes, to EN 12150-1 with CE marking and SGCC, IGCC, ISO, CSI, SAI Global, AS/NZS 4666 and CCC certification. The edges are fully ground and the holes precisely machined. The risk of spontaneous breakage after tempering is very low, and the glass withstands sudden temperature differences of up to 300 °C. Glass fixings are 5 mm grade 304 stainless steel.
Turf
High-linear-density PE yarn, 10 000 dtex, 58 800 stitches/m², on a three-layer PP + PP + SBR backing with a double-layer twill weave that resists tearing and wrinkling. The white lines are woven into the turf, so no gluing is needed and installation is about 3 days shorter. Blue or green as standard; a custom colour is possible.
Lighting
8 × 200 W IP65 LED floodlights with adjustable beam direction, mounted on 6000 mm columns inside the fence line, give up to 300 lx of even light. The slim housings are made of outdoor-grade materials.
Foundation
A reinforced concrete slab of 20.8 × 10.8 m per court, at least 150 mm thick, with 12 mm bars at 250 mm centres. When the concrete work is finished, the slab must be checked for level before installation.
Specifications
| Design | Corner supports integrated into the glass frame, no corner columns |
|---|---|
| Glass | 18 tempered panels, 12 mm, 2995 × 1995 mm, 8 countersunk holes each |
| Glass standard | EN 12150-1, CE |
| Steel structure | Q235B steel, hot-dip galvanised (3 layers), zinc primer and two powder coats |
| Mesh fence | 4 mm galvanised wire, 50 × 50 mm openings, 1 × 2 m panels, powder-coated |
| Bolts and glass fixings | Grade 304 stainless steel; glass fixings 5 mm |
| Turf | PE yarn, 10 000 dtex, 58 800 stitches/m², PP + PP + SBR backing, woven-in lines |
| Turf colour | Blue or green; custom colour on request |
| Lighting | 8 × 200 W LED, IP65, on 6000 mm columns, up to 300 lx |
| Wind resistance | Up to 71.5 m/s (80.5 m/s reinforced) |
| Frame colour | Any RAL colour on request |
| Foundation | Concrete slab 20.8 × 10.8 m, min. 150 mm, Ø12 mm rebar at 250 mm |
